One-setup full-arch work
±35° B-axis tilting reaches deep undercuts and screw-channel access holes without re-fixturing the blank.
SDM6T
SDM6T 5-Axis Dental Mini Milling Machine
Full-arch accuracy in a footprint of 0.36 m²
The SDM6T is our best-selling five-axis milling centre for small and mid-size laboratories. It mills zirconia, PMMA, wax, PEEK, composite and glass ceramic with a 28-position automatic tool changer, and switches to wet mode for CoCr and titanium pre-milled abutments with the optional coolant kit.
Specifications
| Axes | 5-axis simultaneous |
|---|---|
| Cutting type | Wet & dry dual-use |
| Spindle power | 3 kW |
| Spindle speed | 60,000 rpm |
| Spindle cooling | Water-cooled |
| Tool magazine | 28 positions |
| Positioning accuracy | ±0.005 mm |
| Rotation angle | A ±360°, B ±35° |
| Dimensions (L×W×H) | 700 × 940 × 1680 mm |
| Net weight | 566 kg |
| Processable materials | Titanium, Zirconia, PMMA, PEEK, Wax, Glass ceramic |

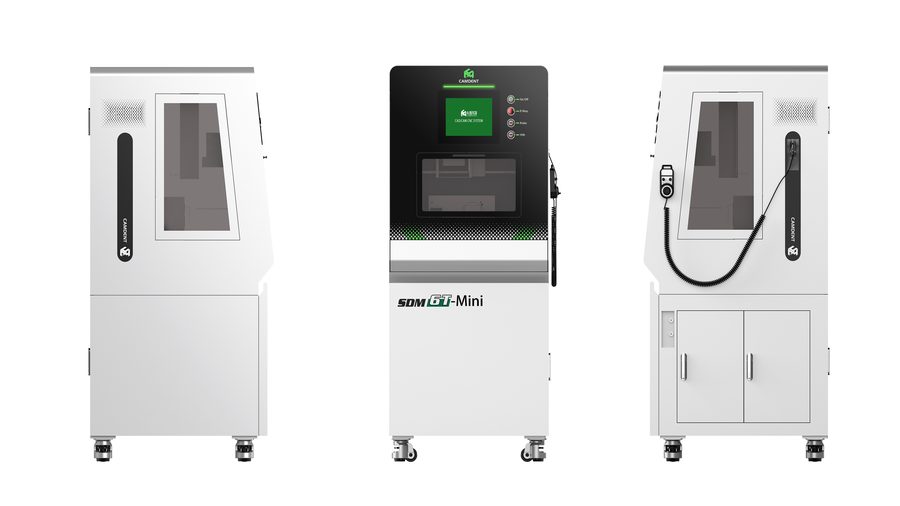

Gallery
Applications
- Crowns & bridges
- Inlays / onlays / veneers
- Implant bars & bridges
- Full-arch restorations
- Denture bases
- Surgical guides
What's in the box
- SDM6T milling unit
- 12-piece starter tool set
- Blank holder + fixtures
- Dust collection hose
- Toolbox & calibration gauge
- USB with software & manuals
Materials
- Zirconia
- PMMA
- Wax
- PEEK
- Composite resin
- Glass ceramic
- CoCr (wet option)
Key advantages
Automatic tool management
28-tool magazine with automatic length measurement and tool-life tracking; the job continues after a tool break.
Quiet, clean operation
Integrated dust collection port, sound level below 65 dB and a sealed working chamber for clinic-side installation.
Remote commissioning
Our engineers log in through the built-in remote-assist module to calibrate, update and train your operators.
After-sales & Operation Tutorials
▶
Machine Installation
SDM6T Unboxing, Leveling and First Power-On
Unpacking, transport lock removal, machine levelling, air and power connection, and the first homing cycle — the exact procedure we follow during remote commissioning.
▶
Daily Maintenance
Daily and Weekly Maintenance Checklist
Ten minutes a day: chamber cleaning, spindle cone care, dust filter check, lubrication points and the weekly accuracy verification coupon.
▶
Troubleshooting
Spindle Calibration and Runout Check
How to measure spindle runout with the supplied gauge, re-calibrate the tool probe and recognise the early signs of bearing wear.
▶
Software Operation
CAM Setup: hyperDENT / MillBox Machine Profile
Import the CAMDENT machine profile, configure blank holders, nesting and strategies, then post-process and send the job over LAN.
Frequently Asked Questions
With the wet cutting kit and the high-torque spindle option it mills pre-milled titanium abutments and CoCr. Standard dry configuration covers zirconia, PMMA, wax and PEEK.
Open STL import works with every major CAD. We provide ready-made machine profiles for hyperDENT, MillBox and DentalCAM-compatible post-processors.
Most technicians are productive on day two. Installation, first job and maintenance are covered in the CAMDENT YouTube tutorial library.
12 months for the machine and 24 months for the spindle, with spare parts dispatched within 48 hours and free lifetime remote support.
